गुणवत्ता सब कुछ है
| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | Linsheng Auto II MaxM |
| मॉडल संख्या: | एलएस-जेएलसी-01 |
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | 159USD~299USD/PC |
| पैकेजिंग विवरण: | दफ़्ती |
| प्रसव के समय: | 2 सप्ताह |
| भुगतान शर्तें: | एल/सी, टी/टी, पेपैल |
| आपूर्ति की क्षमता: | 1000pcs/महीना |
| प्रोडक्ट का नाम: | इलेक्ट्रिक लिफ्टिंग कॉलम | कार्य वोल्टेज: | डीसी 12वी, 24वी |
|---|---|---|---|
| अधिकतम। भार: | 2000n | आघात: | अनुकूलन |
| सीमा परिवर्तन: | में निर्मित | आईपी रेटिंग: | IP20 |
| साइकिल शुल्क: | 10% (2 मिनट चालू/18 मिनट बंद) | रंग: | धूसर काला |
| रफ़्तार: | 8मिमी/सेकंड - 25मिमी/सेकंड | कार्य -तापमान: | -15℃ - +45℃ |
| सिग्नल आउटपुट (वैकल्पिक): | हॉल सेंसर |

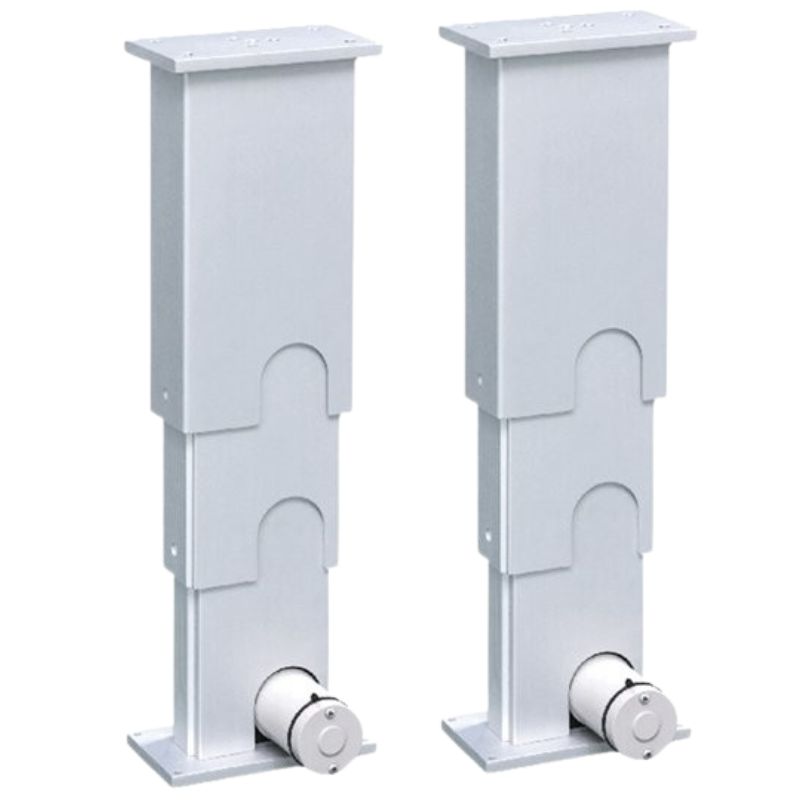

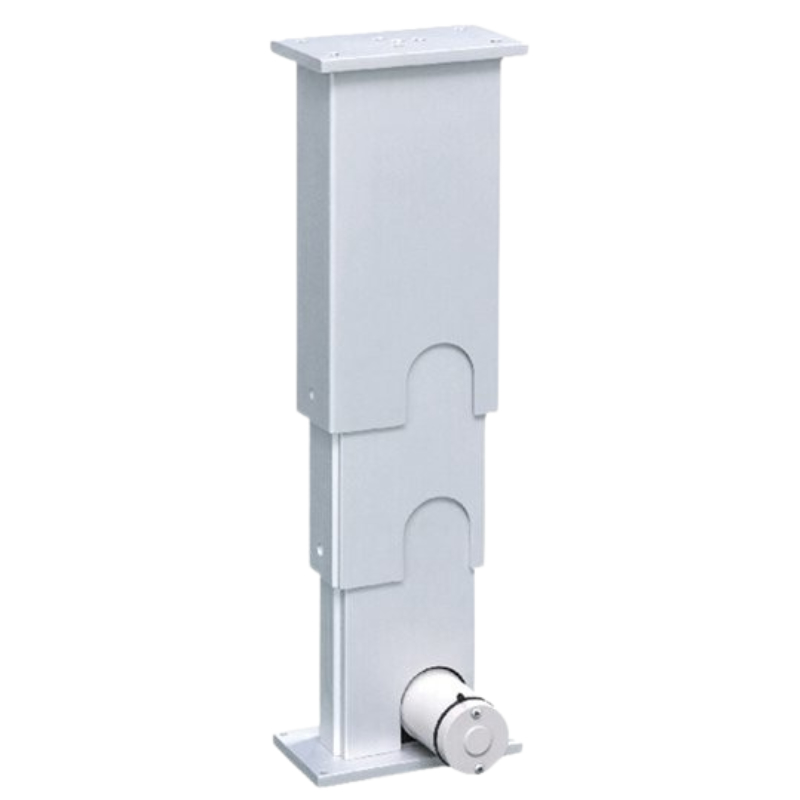

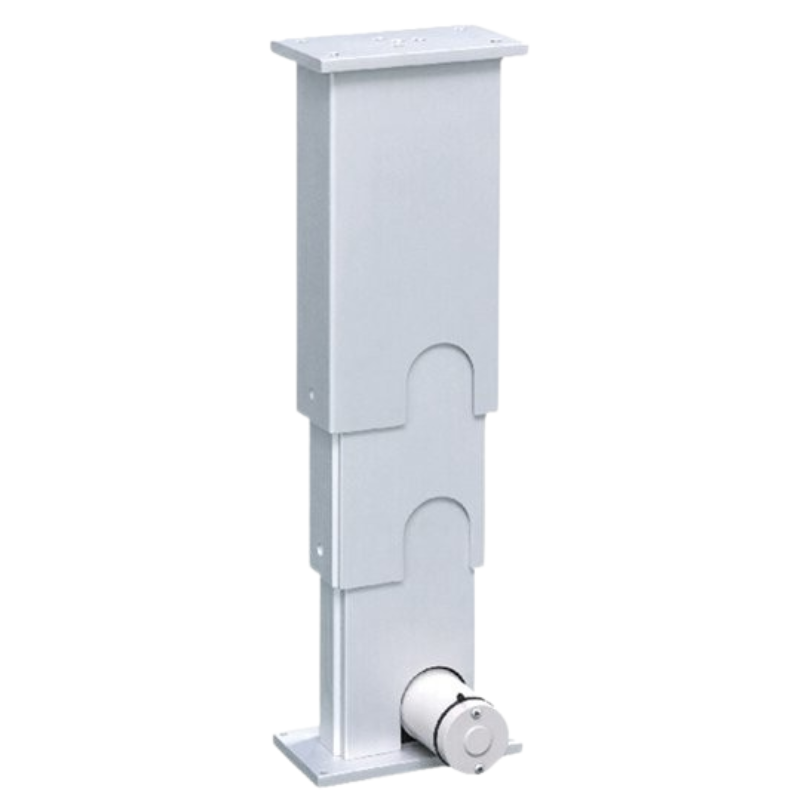

Electric 3-Stage Lifting Column 200KG Load Telescopic Actuator for Adjustable Platform 24V DC
The DC electric lifting column is a compact and reliable vertical lifting solution designed for smooth, stable, and precise height adjustment in various industrial and furniture applications. Powered by a 12V or 24V DC motor, it delivers strong performance with a load capacity of up to 2000N, making it ideal for adjustable tables, medical equipment, machinery, and automation systems.
Features:
Customizable stroke length to meet various height adjustment needs
Maximum 200 kg thrust for light industrial and automation applications
Durable construction with high-quality materials
Stable performance and reliable operation
Specifications:
| Model | LS-JLC-01 |
| Load force | 2000N |
| Working voltage | DC12V / 24V |
| Stroke | Customize |
| Tube no. | 3 stage |
| Speed | 8mm/s - 25mm/s |
| Limit switches | Built in |
| IP rating | IP20 |
| Color | Grey, Black |
| Duty cycle | 10% (2 min. ON/ 18 min. OFF) |

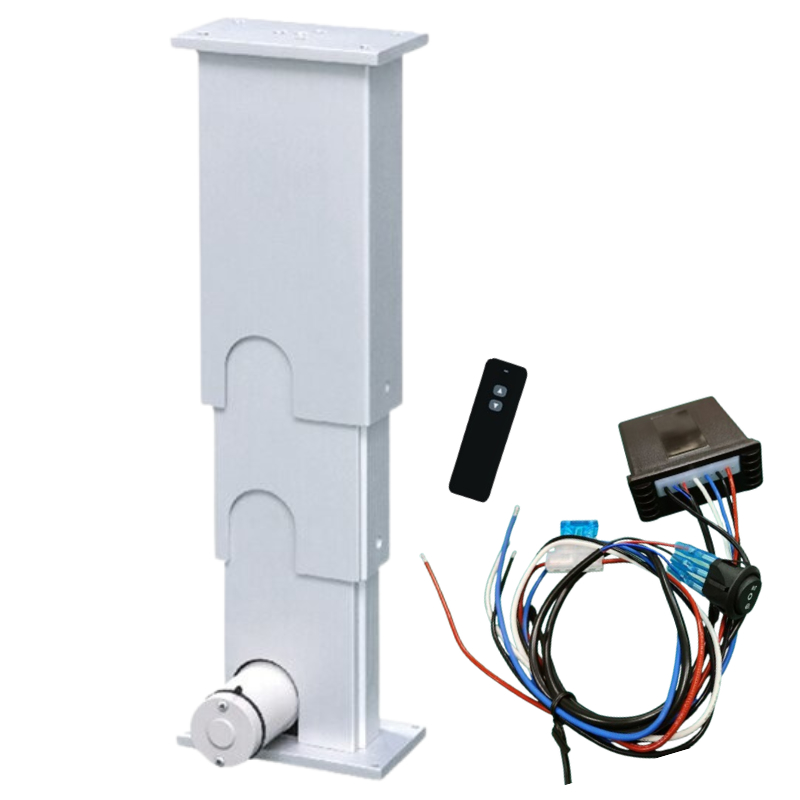

Single Lifting Column Remote Control System:
Model : LS-RSK-1
Voltage: 12V / 24VDC
Max. current: 15A
Operation: Wired switch and Wireless remote control
IP rating: IP66
Frequency: 433.92Mhz
Remote range: 30 meters
Feature: Overcurrent safety protection
Remote option: Momentary and non-momentary
Function: Control one actuator / lifting column motion (UP/DOWN/STOP)
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
